FlexStik® CB Hard Vinyl Cylinder Diameter Build-Up Tapes

Adheso-Mount specialty thin tapes are ideal for mounting corrugated printing plates onto PVC or Polyester based carrier films of various thickness.

These tapes feature rubber or acrylic adhesive systems—usage depends on the level of bond required in the final application. Thin Plate Mount Tapes are available in a wide variety of thicknesses, widths and liner types.

Plates are typically flat mounted to these tapes. After lamination, the liner is removed and the plate is ready for attachment to the carrier film. Adheso thin tapes are also suitable for use in plate build-up or press-low spot correction. Critical use applications include compressible print sleeve plate mount, and offset blanket adhesive lamination. They feature multiple adhesion levels including Rubber or Acrylic systems coated on a hard film carrier. FlexStik hard tapes find application in harsh printing environments, where temperature or long-run durability are required. They are ideal for printing solid or fine-line graphics, and for extreme high-bond plate attachment. FlexStik tapes provide a secure bond between various plate types and thicknesses. Best suited for printing paper or film substrates type films or simple graphic reproduction.

Download - FlexStik CB data sheet, English 450KB

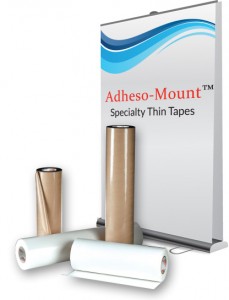

Adheso-Mount™ Specialty Thin Tapes for Corrugated Mounting
Product Thickness Adhesion Carrier Adhesive Liner Features / Applications
FS-23 0.0045”
(0.11mm)
High Adhesion,
Permanent Final Bond
Clear Polyester
Film
D/C Acrylic White Lay-flat
Paper
Thick plate, corrugated flexo mount for polymer plates. Attachment to PVC or polyester base carrier films.
AM-23T 0.005”
(0.12mm)
Reposition Modified,
Secure Final Bond
Clear Polyester
Film
D/C Acrylic Clear Pebble Pattern Film Air reduction pattern liner for elimination of air pockets in thick plate flexographic plate mounting.
FS-25 0.003”
(0.07mm)
Medium Adhesion,
Permanent Final Bond
Clear Polyester
Film
D/C Acrylic White Lay-flat
Paper
Thick plate, corrugated flexo mount for polymer plates. Attachment to PVC or polyester base carrier films. Date code and letterpress plate mounting.
FS-49 0.005”
(0.12mm)
High Adhesion,
Permanent Final Bond
Clear Polyester
Film
D/C Rubber White Lay-flat
Paper
Thick plate, corrugated flexo mount for rubber and polymer plates. Ultra-high adhesion. Also for rubber stamp plate attachment.
FS-50 0.005”
(0.12mm)
High Adhesion,
Removable Bond
Clear Polyester
Film
D/C Rubber White Lay-flat
Paper
Adhesion to PP-based LSE carrier films.
FS-59 0.003”
(0.07mm)
High Adhesion/
Adhesive Bond
Fiber Supported
Adhesive
Transfer
Fiber Supported
Acrylic
Adhesive
Brown
Polycoated
Paper
Multi-plate thickness, flexible adhesive transfer film for corrugated and standard flexo plate attachment. Plate build-up and spot build applications.
FS-70 0.003”
(0.07mm)
Medium Adhesion/
Adhesive Bond
Fiber Supported
Adhesive
Transfer
Fiber Supported
Acrylic
Adhesive
Manila
Polycoated
Paper
Multi-plate thickness, flexible adhesive transfer film for corrugated and standard flexo plate attachment.
FS-95 0.005”
(0.12mm)
Ultra-High Adhesion/
Adhesive Bond
Fiber Supported Adhesive Transfer Fiber Supported
Acrylic
Adhesive
Brown
Polycoated
Paper
Multi-plate thickness, flexible adhesive transfer film for corrugated and standard flexo plate attachment. Plate build-up and spot build applications.
RLT-4-EP 0.004”
(0.10mm)
Medium Adhesion,
Medium Final Bond
Clear UPVC
Film
Differential
Rubber
Light Blue
Fluted Film
Versatile plate mount tape system for corrugated, sleeve mount and cushion sleeve plate attachment. Air reduction fluted liner. Reusable adhesive system. Decorative card water wash plate and rotary letterpress plate mount.
FS-5 0.005”
(0.12mm)
Medium Adhesion,
Re-mount, Repositionable
Adhesive Bond
Clear UPVC
Film
Acrylic Open
Side, Rubber
Liner Side
White Lay-flat
Paper
Cushion sleeve mounting tape. Mounting thin polymer plates on compressible cushion sleeve systems.
FS-2015 0.005”
(0.12mm)
High Adhesion,
Permanent Final Bond
Clear Polyester
Film
D/C Acrylic White Lay-flat
Paper
Quick adhesion tape. Ultimate adhesion to PVC carrier films.
FS-219 0.0083”
(0.21mm)
Ultra Adhesion Clear Polyester
Film
D/C Acrylic White Lay-flat
Paper
Rubber stamp mounting affixing tape.
2R2.10 0.010″
(0.25mm)
High Adhesion Black Hard Vinyl D/C Rubber Brown
Polycoated
Paper
Secure bond 10 mil. corrugated / flexo plate mounting tape.
AM-2360 0.005″
(0.12mm)
Higher Adhesion version of AM-23T Clear 1.5 mil PET film carrier D/C Acrylic Clear Pebble Pattern Film Air Reduction Pebble Liner, Clear Liner for see through plate registration or Cad Plate cutting on corrugated or standard flexographic plate systems
