Foam Plate Mounting Tapes
tesa Softprint® plate mounting tapes with high-quality foam backings for the highest demands in flexographic printing.
Increasing demands on print quality combined with high levels of process efficiency call for specifically tailored plate mounting tapes.
Our tesa Softprint® assortment provides distinctive product lines for flexo printers to fulfill any requirement.

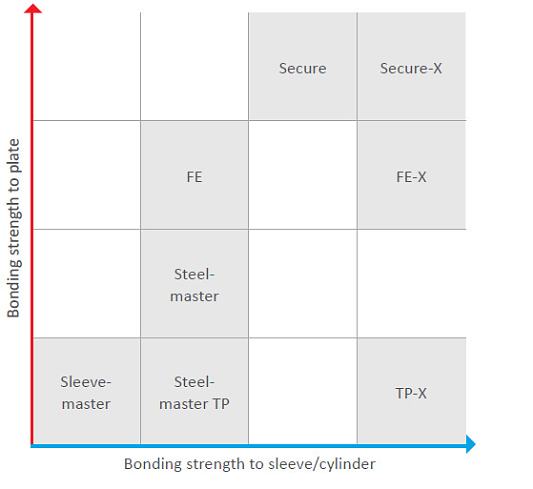

Depending on your process requirements, our product matrix will help you find a suitable product line from our tesa Softprint® plate mounting assortment.
tesa Softprint® 500 µm (20 mil) Assortment Video
Historically, foam plate mounting tapes were divided into two thickness categories: 380 μm / 15 mil for label printing (narrow web) and 500 μm / 20 mil for flexible packaging printing (wide web). Nowadays, customers decide individually which category offers the most benefits for their processes.
Our tesa Softprint® assortment offers both thickness categories at an equally high level of quality in terms of print results and adhesive properties.
tesa Softprint® 380 µm (15 mil) Foam Tapes
| Product | Hardness | Logo Color | Backing Material | Type of Adhesive |
|---|---|---|---|---|
| tesa Softprint® 52015 Steel Master | medium-hard | blue | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52017 Steel Master | soft | red | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52018 Steel Master | extra soft | yellow | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52115 Steel Master TP | medium-hard | blue | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52117 Steel Master TP | soft | red | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52118 Steel Master TP | extra soft | yellow | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52814 Secure | hard | green | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52815 Secure | medium-hard | blue | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52816 Secure | medium | purple | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52817 Secure | soft | red | PE foam with film lamination | tackified acrylic |
| tesa Softprint® 52818 Secure | extra soft | yellow | PE foam with film lamination | tackified acrylic |
tesa Softprint® 500 µm (20 mil) Foam Tapes
| Product | Hardness | Logo Color | Backing Material |
|---|---|---|---|
| tesa Softprint® 72022 Steelmaster | soft | red | PE foam with film lamination |
| tesa Softprint® 72024 Steelmaster | medium | purple | PE foam with film lamination |
| tesa Softprint® 72026 Steelmaster | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72028 Steelmaster | hard | green | PE foam with film lamination |
| tesa Softprint® 72122 Steelmaster TP | soft | red | PE foam with film lamination |
| tesa Softprint® 72124 Steelmaster TP | medium | purple | PE foam with film lamination |
| tesa Softprint® 72126 Steelmaster TP | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72128 Steelmaster TP | hard | green | PE foam with film lamination |
| tesa Softprint® 72220 Sleevemaster | extra soft | yellow | PE foam with film lamination |
| tesa Softprint® 72222 Sleevemaster | soft | red | PE foam with film lamination |
| tesa Softprint® 72224 Sleevemaster | medium | purple | PE foam with film lamination |
| tesa Softprint® 72226 Sleevemaster | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72228 Sleevemaster | hard | green | PE foam with film lamination |
| tesa Softprint® 72322 TP-X | soft | red | PE foam with film lamination |
| tesa Softprint® 72324 TP-X | medium | purple | PE foam with film lamination |
| tesa Softprint® 72326 TP-X | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72328 TP-X | hard | green | PE foam with film lamination |
| tesa Softprint® 72422 FE | soft | red | PE foam with film lamination |
| tesa Softprint® 72424 FE | medium | purple | PE foam with film lamination |
| tesa Softprint® 72426 FE | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72428 FE | hard | green | PE foam with film lamination |
| tesa Softprint® 72522 FE-X | soft | red | PE foam with film lamination |
| tesa Softprint® 72524 FE-X | medium | purple | PE foam with film lamination |
| tesa Softprint® 72526 FE-X | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72528 FE-X | hard | green | PE foam with film lamination |
| tesa Softprint® 72622 Secure | soft | red | PE foam with film lamination |
| tesa Softprint® 72624 Secure | medium | purple | PE foam with film lamination |
| tesa Softprint® 72626 Secure | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72628 Secure | hard | green | PE foam with film lamination |
| tesa Softprint® 72722 Secure-X | soft | red | PE foam with film lamination |
| tesa Softprint® 72724 Secure-X | medium | purple | PE foam with film lamination |
| tesa Softprint® 72726 Secure-X | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 72728 Secure-X | hard | green | PE foam with film lamination |
| tesa Softprint® 73322 TP-X | soft | red | PE foam with film lamination |
| tesa Softprint® 73324 TP-X | medium | purple | PE foam with film lamination |
| tesa Softprint® 73326 TP-X | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 73328 TP-X | hard | green | PE foam with film lamination |
| tesa Softprint® 73522 FE-X | soft | red | PE foam with film lamination |
| tesa Softprint® 73524 FE-X | medium | purple | PE foam with film lamination |
| tesa Softprint® 73526 FE-X | medium-hard | blue | PE foam with film lamination |
| tesa Softprint® 73528 FE-X | hard | green | PE foam with film lamination |
Product Data sheets
(Adobe Acrobat PDFs, require Adobe Reader)
tesa-softprint-plate-mounting-solutions-for-flexographic-printing.pdf
