With a deep commitment to truth and quality, MicroDynamics is proud to be the standard in true, accurate anilox measurement, not only for roll manufacturers but now for printers and converters globally. When other anilox cameras and microscopes fail to deliver accurate, repeatable results, companies look to MicroDynamics for systems and technology based on integrity and truth.
3DQC Veritas™ Anilox Inspection System
Veritas™ is the newest anilox microscope system from MicroDynamics. The new system offers the same accurate, repeatable results your favorite anilox OEMs have relied on for decades, now strategically priced for pressroom operations.
Built from the 3DQC Classic technology, Veritas™ design is streamlined for ease of use and efficient QC operations with incredibly fast scans and intuitive design.
- UNMATCHED ACCURACY
White light interferometry for extreme accuracy with +/- 1% measurement repeatability and no damage to the roll. - SCANS IN < 8 SECONDS
Manual and automated features capture images and generates reports in less than 8 seconds! - INTUITIVE DESIGN
Stunning graphics and a modern interface favoring simplicity and ease of use. A status LED on the rear indicates the device is ready while locking USB and power connectors offer secure, reliable data transfer at super-fast USB 3.0 speeds. - ROBUST & DURABLE
The rugged pressure-formed housing features an ergonomic integrated handle, and the extended machined aluminum base plate keeps the optics protected. Internal optics are designed for increased dust resistance in production environments. - FULL INVENTORY AUDITS
A wide range of line screens and engravings can be measured, allowing you to audit your whole inventory with one precision instrument.
Veritas™ is the newest anilox microscope system from MicroDynamics. The new system offers the same accurate, repeatable results your favorite anilox OEMs have relied on for decades, now strategically priced for pressroom operations.
Built from the 3DQC Classic technology, Veritas™ design is streamlined for ease of use and efficient QC operations with incredibly fast scans and intuitive design.
- UNMATCHED ACCURACY
White light interferometry for extreme accuracy with +/- 1% measurement repeatability and no damage to the roll. - SCANS IN < 8 SECONDS
Manual and automated features capture images and generates reports in less than 8 seconds! - INTUITIVE DESIGN
Stunning graphics and a modern interface favoring simplicity and ease of use. A status LED on the rear indicates the device is ready while locking USB and power connectors offer secure, reliable data transfer at super-fast USB 3.0 speeds. - ROBUST & DURABLE
The rugged pressure-formed housing features an ergonomic integrated handle, and the extended machined aluminum base plate keeps the optics protected. Internal optics are designed for increased dust resistance in production environments. - FULL INVENTORY AUDITS
A wide range of line screens and engravings can be measured, allowing you to audit your whole inventory with one precision instrument.
3DQC Classic™ Anilox Inspection System
The Original Pioneer of Precision Anilox Roll Measurement Engineered for roll manufacturer QC
- UNMATCHED ACCURACY
White light interferometry for extreme accuracy with +/- 1% measurement repeatability and no damage to the roll. - INTUITIVE DESIGN
User-friendly interface provides a status LED light with locked USB and power connectors for reliable data transfer at fast USB 3.0 speeds. - ROBUST & DURABLE
Rugged, portable and dust resistant optics, designed for manufacturing environments.

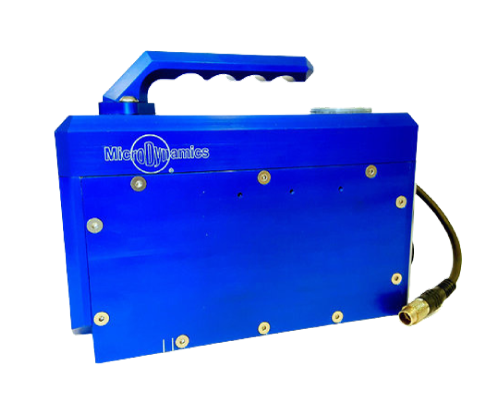

LaserQC™ Anilox Roll Scanner
Accurate QC Inspection Engineered for Coarse Cylinders & Specialty Surfaces Under 150lpi
- PRECISION, HIGH SPEED LASER
Precision, high-speed laser scanner blazes along the roll, covering a huge area and delivering precision results in seconds. - SCANS LARGE AREA IN < 10 SECONDS
Large scan area of 7 mm H x 5 mm V, with accurate measurement results in less than 10 seconds! - ROBUST & DURABLE
Ruggedized for the printing plant environment with the same robust design principles used in the Veritas and Classic 3DQC inspection scopes.
MicroScan3™ Anilox Inspection System
Powerful Software for Actionable Roll Inspection and Analysis. Precision measurements require sophisticated inspection software to control the microscope and process the data. Our MicroScan™ software, now in its third generation, has been under continuous improvement for more than a decade as we add customer-inspired features and capabilities.
- ADVANCED DATA ANALYSIS
Average cell depth, screen count, volume, screen angle, and more are calculated in seconds for analysis.
Measure individual features and see cross sections of the surface along any line you can draw on the image. - POWERFUL DATABASE STORAGE
Save all data from every scan directly in your customizable MicroScan database for instant access to measurement history.
Protect and easily share data using backup and export features. - AUDIT HISTORY & TREND ANALYSIS
Monitor the volume of your roll as it wears down and predict future roll re-engraving needs and timelines.
Assess roll quality and ROI and weed out poor rolls impacting profitability. - MICROSCOPE CONTROL
Adjust focus, set exposure parameters, and snag a quick snapshot with full microscope control within MicroScan.
Quickly and smoothly scan the surface in steps as fine as a hundredth of a micron. - 3D DATA VISUALIZATION
Generate 3D maps of the roll surface with just one click. Roll it around, zoom in and out and view your assets in all angles.
3DQC scan speed makes it possible to scan all over to examine potential problems and check volume uniformity.
