Powerwise Peristaltic pumps minimize press downtime by allowing easy changing of the hose in the pump head.
Powerwise peristaltic ink pumps are supplied with the following specifications: air gear motors (intrinsically explosion proof), non-explosion proof inverter drive models, and electric explosion proof mechanical gear units. All models can be supplied with reversible feature to drain ink stations and enclosed doctor blades. Variable speed allows controlled ink flow.
For the inverter drive units, Powerwise provides a convenient control panel that allows you to simply plug the pump in and control the speed and direction by a simple switch mechanism. All inverters are programmable to allow the operators to get the exact flow they need. Accessories include mixers, cart systems, a wide range of tubing, tube lubrication, stainless steel lids and tanks.
Air Motor Driven Variable Speed Peristaltic Ink Pump
Model 9079NG
This specification is for USA & European Market
Suitable for both hazardous & non-hazardous areas.
Standard Flexographic and Gravure ink applications
Geared Air Motor
Lubricated Air 25 - 100 PSI Range Required
Adjustable speed range 0-350 RPM
Flow Rate 0 - 2.5 GPM (0 - 9.35 LPM)
This pump will handle high viscosity fluids and is ideal for heavy inks and adhesives.

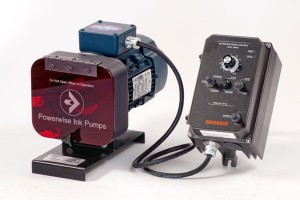

Electric Motor Driven Variable Speed Peristaltic Ink Pump
Model 9090NAC
This specification is for USA & European Market
Suitable for non-hazardous areas.
Standard Flexographic and Gravure ink applications
110/220 Single Phase Voltage requirement for Inverter
Adjustable speed range 0-350 RPM
Forward/Stop/Reverse Switching
Flow Rate 0 - 2.5 GPM (0 - 9.35 LPM)
This pump will handle high viscosity fluids and is ideal for heavy inks and adhesives.

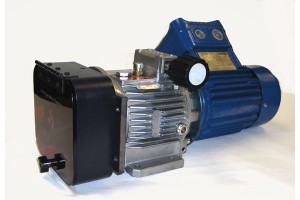

Electric Motor Driven Variable Speed Peristaltic Ink Pump
Model 9090NGBE
This specification is for USA & European Market
Suitable for hazardous areas.
Standard Flexographic and Gravure ink applications
0.5HP/037Kw Explosionproof Motor 230/460.3.50/60 Voltage
Adjustable speed range 0-250 RPM
Forward/Reverse Using Handwheel
Flow Rate 0 - 2.5 GPM (0 - 9.35 LPM)
This pump will handle high viscosity fluids and is ideal for heavy inks and adhesives.
