Sonic Solutions Ultrasonic Anilox Roll Cleaners
You'll See the Difference Every Time You Print
Sonic Solutions' traditional systems have been upgraded with several enhancements and are now part of the Phoenix Series. If you liked their older systems, you will love the new ones!
The Phoenix Series was developed based upon your needs and includes the following enhancements:
- Safer Level of Ultrasonics - 68 kHz - to allow smaller bubbles to get into the smaller cells of the higher line count rolls.
- Modified Power Generators - now external, interchangeable and easily replaceable.
- Safer Heating System - increased reliability with fixed thermostat settings and low-level automatic shutoff.
- Long-Lasting Equipment - Enhanced with replacable ultrasonic transducers as well as timing pulleys with bearings.
- Standard Size Equipment Configuration - to coincide with our past systems.
- Fully Customizable Sizes - to coincide with larger sleeves and anilox rolls. No anilox roll is too large for Sonic Solutions - from 3 inches to 10 feet - from 1 roll to 8 rolls at a time - we can economically make a system to fit your needs.
PX-121
- Cleans up to 10" (250 mm) anilox rolls.
- Cleans up to 1 anilox roll at one time.
- Holds 3 Gallons (12 L) of solution.
- 120 volt, 60 Hz electrical equipment (240 volt option also available).
- 14-Gauge, 12" (300mm) long stainless-steel tank.
- Thermostat fixed heating with low-liquid protection shutoff.
- Tank includes stainless-steel cover and ball-valve drain.
- External ultrasonic generator with 30-minute time.
- Delivers 250 watts of power at 68 Khz.
- Frequency Sweep Technology.
- Removable Stainless single motor rotating unit with special grip-belt drive.
- Stainless-steel single support slide-bar system - infinitely adjustable.
- One free 6 Gallon (23 L) of SONIC KLEEN cleaning solution.
- Operator's Manual.
- 1-Year Limited Warranty.

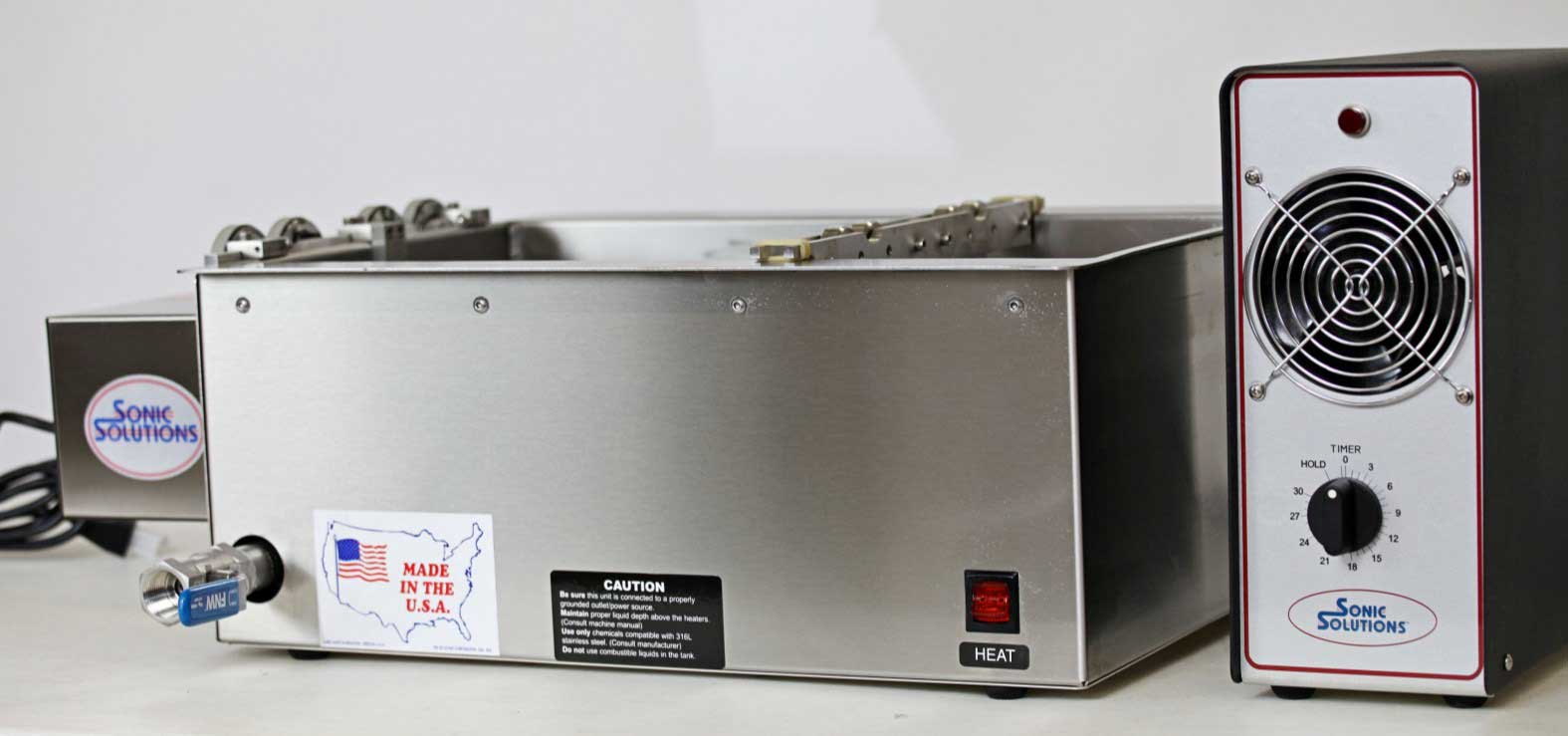

PX-202
- Cleans up to 19" (480mm) anilox rolls.
- Cleans up to 2 anilox rolls at one time.
- Holds 6 gallons (23L) of solution.
- 120 volt, 60 Hz electrical equipment (240 volt also available).
- 14 gauge, 19 3/4" (500mm) long stainless-steel tank.
- Thermostat fixed heating with low-liquid protection shutoff.
- Tank includes stainless-steel cover and ball-valve drain.
- External ultrasonic generator with 30-minute timer.
- Delivers 500 watts of power at 68 Khz.
- Frequency Sweep Technology.
- Removable Stainless dual-motor rotating unit with special grip-belt drive.
- Stainless-steel dual-support slide-bar system - infinitely adjustable.
- One free 6 gallon (23 L)of SONIC KLEEN cleaning solution.
- Operator's Manual.
- 1-Year Limited Warranty.

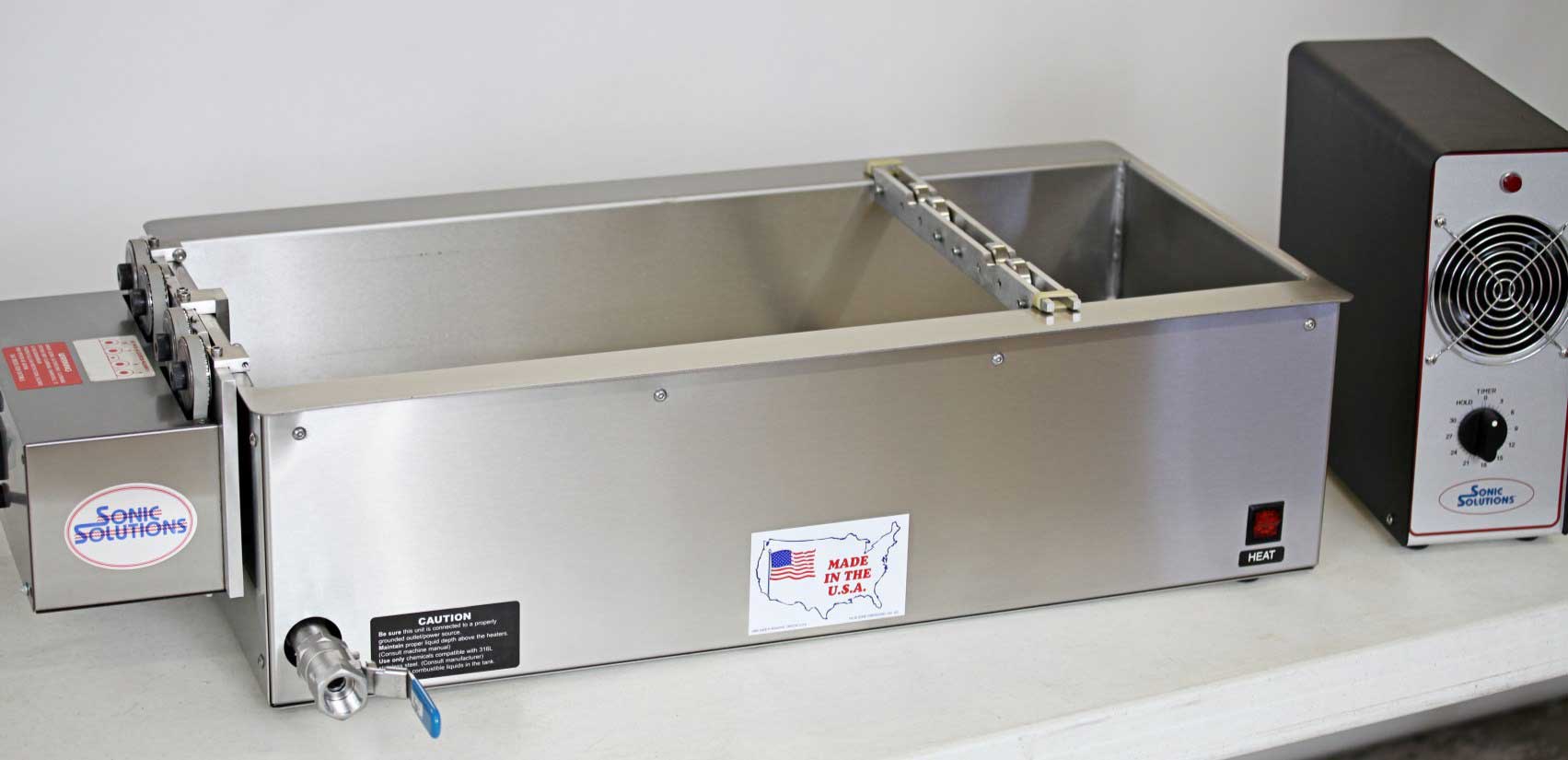

PX-302
- Cleans up to 29" (730 mm) anilox rolls.
- Cleans up to 2 anilox rolls at one time.
- Holds 9 gallons (34 L) of solution.
- 120 volt, 60 Hz electrical equipment (240 volt also available).
- 14 gauge, 30" (760 mm) long stainless steel tank.
- Thermostat fixed heating with low liquid protection shut off.
- Tank includes stainless steel cover and ball-valve drain.
- External ultrasonic generator with 30-minute timer.
- Delivering 500 watts of power at 68 Khz.
- Frequency Sweep Technology.
- Removable Stainless dual-motor rotating unit with special grip-belt drive.
- Stainless-steel dual-support slide-bar system - infinitely adjustable.
- Two free 6 gallon (46L) SONIC KLEEN cleaning solution.
- Operator's Manual.
- 1-Year Limited Warrant.

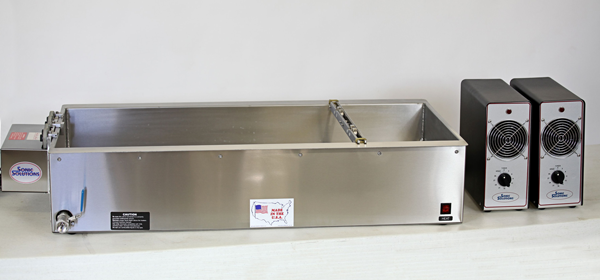

PX-Custom
- Custom built to your anilox roll requirements.
- Can be designed to clean the number of rolls you want to be cleaned.
- 117 volt, 60 Hz electrical equipment (240 volt also available).
- 14-gauge stainless-steel tank.
- Tank includes heater, stainless-steel cover, ball-valve drain.
- External Ultrasonic generator with timer.
- Delivers ultrasonic power at 68 Khz.
- Frequency sweep technology.
- Removable stainless-steel rotating unit with special belt drive.
- Stainless-steel support slide-bar system - infinitely adjustable.
- Starter volume of SONIC KLEEN cleaning solution provided free depending upon tank specifications.
- Operator's Manual.
- 1-Year Limited Warranty.

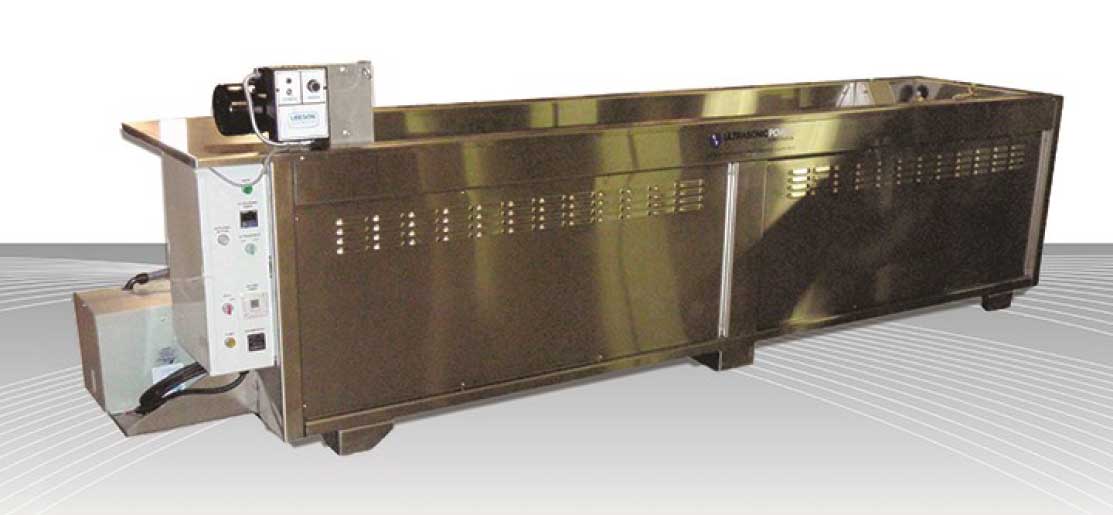

PX-WW (Wide-Web System)
- Custom Built to your anilox rolls' specifications (up to 10 feet / 3 meters).
- Designed to clean one roll at a time.
- 117 V and 230 V electrical equipment powered by 50 kHz or 60 kHz generator.
- 12-gauge stainless-steel tank.
- Tank includes heater, stainless-steel cover, and ball-valve drain.
- External ultrasonic generator with timer.
- Delivers ultrasonic power at 68 kHz for a more thorough, gentle cleaning.
- Frequency Sweep Technology.
- Integrated rotating mechanism with fixed-rate rotation.
- Removable supports with heavy-duty urethane support rollers.
- Operator's Manual.
- 1-Year Limited Warranty.
Download - Sonic Solutions Wide Web data sheet, English 227KB

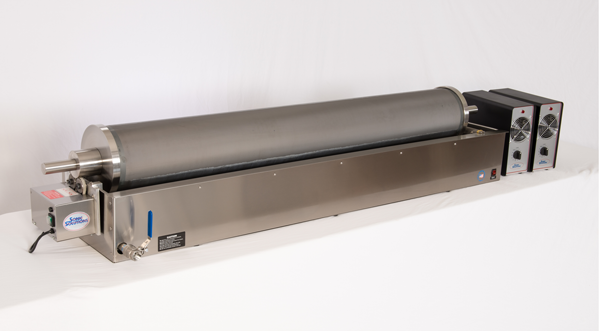

Sleeve Adapters
- Custom designed to your sleeves' specifications.
- Designed to work on our anilox roll cleaning systems.
- Made of all stainless-steel construction.
- Designed with caps on sleeve ends secured by journals that allow the rolls to be supported and rotate on the cleaning system.
Download - Sonic Solutions Sleeve System data sheet, English 251KB
