Dantex Digital UV Inkjet Presses for the Label Industry
The impressive Pico range of Digital UV Inkjet Presses offers print platforms from entry level to full hybrid, 8-color, high-speed models.

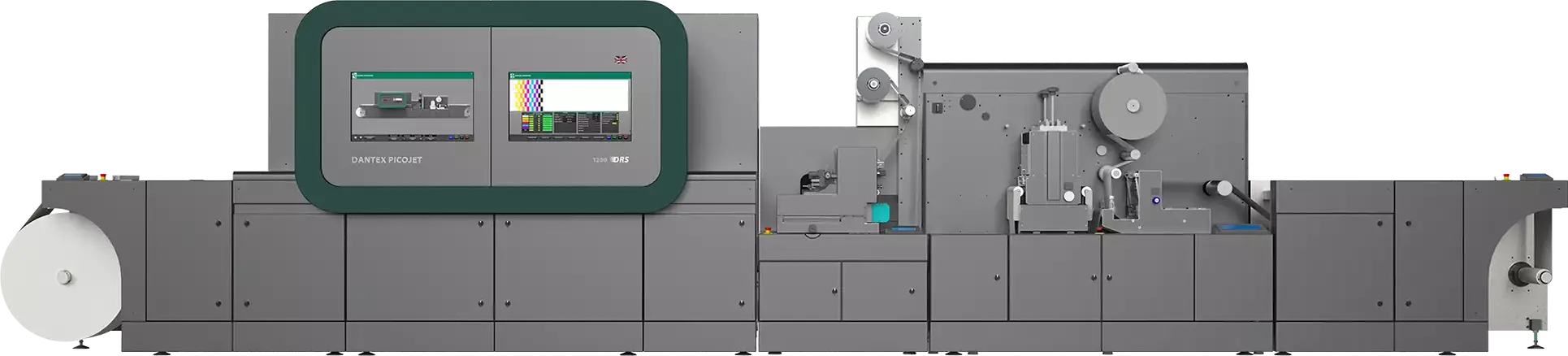

PicoJet 1200 UV Inkjet Digital Press
PICOJET 1200 is built on a modular platform, so it is available as a reel-to-reel press or as a bespoke hybrid system, allowing the incorporation of features such as Die Cutting and Flexo Station options. It can also be custom-configured with a variety of base and additional color stations.
The short-run digital print label system your business has been waiting for.
Wide Range of Finishing Options
The 1200 can be fitted with a wide range of finishing options, including Cold Foil, Lamination, Nip & Peel, Razor or Shear Slitting, RD Scorer (Edge Trim), Die and Die Loading Equipment.
Superior Quality Print
PicoJet offers superb-quality print, fast. Using a 2.5pl ink droplet size offering exceptional ink coverage without any loss of quality or color integrity, PicoJet delivers high-quality results even on the most challenging jobs at an effective resolution of 1200 dpi.
PicoJet uses an energy-efficient LED final cure with a temperature-controlled backup roller for temperature-sensitive substrates. PicoJet also incorporates static control, web cleaning and corona treatment for a wide choice substrate printing capability.
Production Solutions
- Improve profitability on every label.
- Ultimate flexibility and highest print speeds available.
- Vivid, photo-realistic images and SuperWhite.
- Industry-leading software.
- No minimum print quantity.
- No speciality substrates or pre-coating required.
- A wide range of embellishments and finishing options.
- Super-fast job turnaround.
- Built to the highest quality industry standards.
Technical Specifications
| Print Width | 254mm / 10" (PJ1200), up to 350mm / 13.75" |
| Print Speed | 50m / 164' per minute, 75m / 250' per minute |
| Resolution | 1700 - 2400 dpi |
| Minimum Droplet Size | 2.5pl |
| Substrate Thickness | 50 - 300μm (Thickness dependent on material properties) |
| Available Colors | CMYK / WHITE / ORANGE / GREEN / VIOLET |
PicoJet 1200 Modular Options
Systems Options
- Additional Color Stations
- SuperWhite® Station
- Corona
- Variable Data
- Mark Sensor
- Chilled Roller
- Reel Lifter
- Video Inspection System
Die station options
- Full Rotary / Semi Rotary
- Razor Slit / Shear Slit
- RD Scorer (Edge Trim)
- Self-wound Lamination
- Nip & Peel (only with rewind)
- Die Loading Trolley
- Die Cylinder Bench
Flexo station options
- LED Curing
- Mercury Arc Curing
- Cold Foil
- Lamination
See the PICOJET 1200 in Action
Download: Dantex Pico Press Brochure - Adobe PDF, 16.9MB
Next Generation PicoColour
Now with touch-screen!
Representing the next step in Pico technology development is built on the PicoJet platform and benefits from this advanced technology.
In comparison to PicoColour Classic, the all-new PicoColour provides an increase in print width to 254mm/10”, a resolution uplift to 600 x 600 dpi, and an increase in speed to 50m/164’ per minute.
In addition, the press offers a minimum droplet size of 2.5pl compared to 6pl.
PicoColour is Built on the PicoJet Platform
The benefits that this advanced technology provides are an increase in print width to 254mm/10” and speeds up to 50m/164’ per minute.
Offering excellent printed results and suitable for short and long-run jobs, the press provides all the benefits of digital printing for today’s demanding production environment, including no minimum quantity, no waste, and a super-fast turnaround.
Technical Specifications
| Print Width | 254mm / 10" |
| Print Speed | 50m / 164' per minute |
| Resolution | 600 x 600 dpi (1200 dpi effective resolution) |
| Minimum Droplet Size | 2.5pl |
| Substrate Thickness | 50 - 300μm (Thickness dependent on material properties) |
| Available Colors | CMYK / WHITE |
Compact Inline Finishing
Providing further opportunities for more competitive product placement, PicoColour is available with compact inline finishing. Offering excellent printed results and suitable for short and long run jobs, the press provides all the benefits of digital printing for today’s demanding production environment.
Available Configurations
- CMYK Printing System
- CMYK + W Printing System
Systems Options
- Full Rotary Die Cut Station
- Matrix Remover
- In-line Lamination
- Backslitter (Edge Trim)
- In-line Razor (Up to 6 knives)
- Additional Mark Sensors
- Corona Unit
- Web Cleaner
- Anti-static
