Dantex Combination Processor AQF 2530

For use with Aquaflex and Rapidoflex Plates

Our AQF processing range ensures our plates enjoy the fastest wash times in the world today with superb quality results, developed to fully comply with the latest environmental legislation.

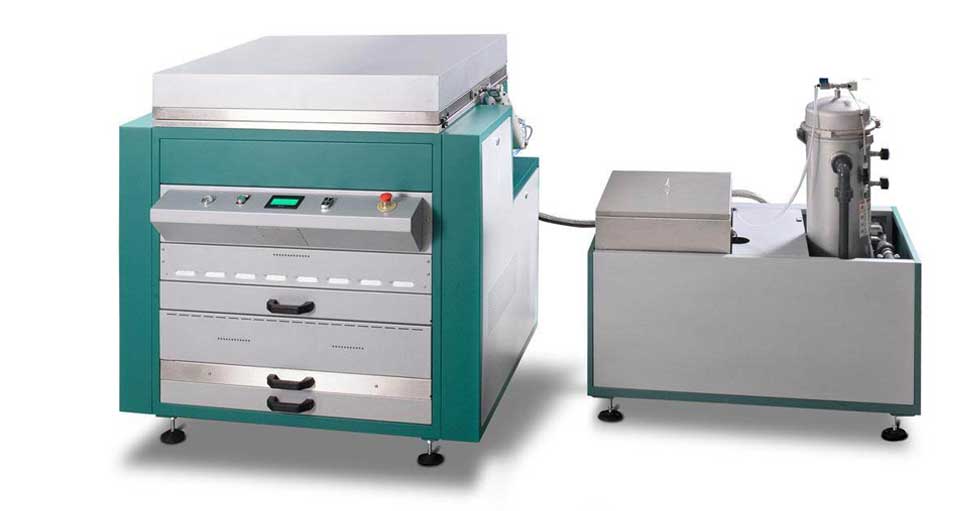

Dantex AQF 2530 water-wash plate processor

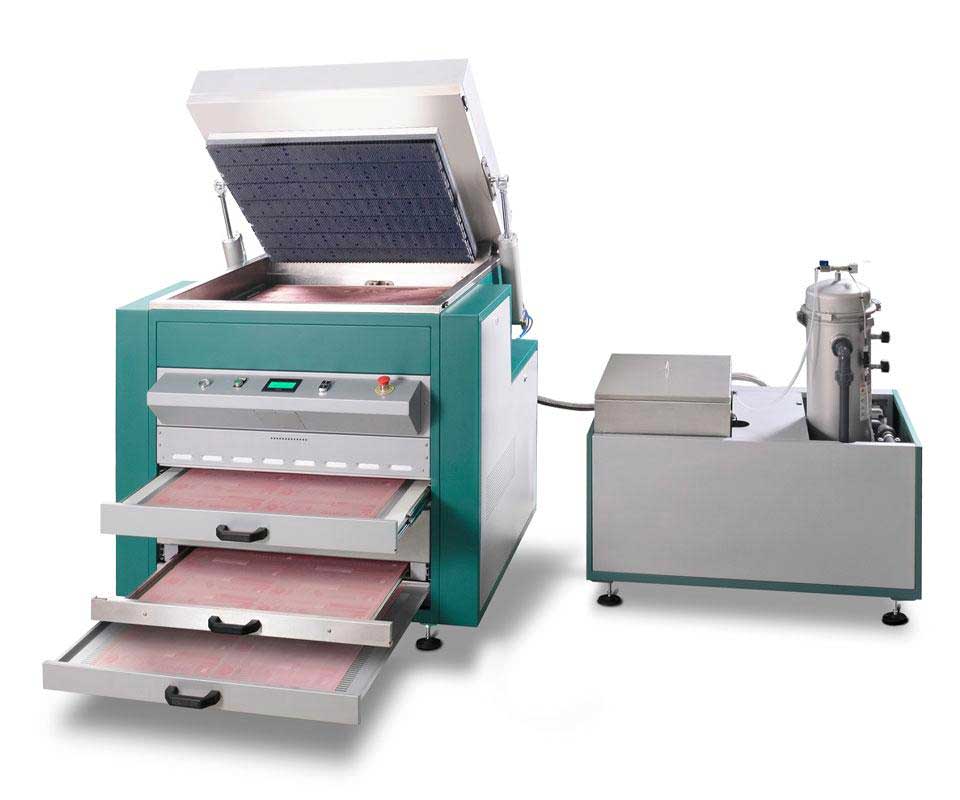

Dantex AQF 2530 Plate Processor

Download: Dantex AQF 2530 Basic data sheet – Adobe PDF, 1.1 MB
Download: Dantex AQF 2530 Standard data sheet – Adobe PDF, 1.1 MB
Download: Dantex AQF 2530 Advanced data sheet – Adobe PDF, 1.1 MB



Why use AQF 2530?

Benefit from the compact processing system for water wash flexo plates by the Dantex Group. Exposure unit, washer and dryer in combination. Filtration system included. The perfect processor for small and medium amounts of plates, that delivers high print quality.

  • Simultaneous processing system of the whole plate surface
  • Pre and main exposure with vacuum pump and gauge
  • Fastening section on a table with permanent sticky plate
  • Washout with an orbital and alternating movement
  • Independent movement of the table
  • Indicator LEDs informing about the state of lamps
  • Dryer separated by a special material which allows the lamp temperature maintenance at 45 degrees
  • 9 channel touch screen controller: pre-exp. time, main expo-sure time, washout time, post- exp. time, finishing, dryer time
  • Water and dryer section temperature control
  • Detergent doser pump
  • Filtration system included

Technical Specifications – AQF 2530

  • Plate format (mm) 635 x 762
  • Plate format (inches) 25” x 30”
  • Quantity developer in tank (l) 110
  • UVA exposure lamps N.13 60W 10R L.900
  • UVA post-exposure lamps N.12 60W 10R L.900
  • UVC lamps N.11 30W L. 900
  • Max. thickness processable (mm) 2,84
  • Wattage (kW) 16
  • Electrical supply 230V 3PH+GND 60Hz, 400V 3PH+N+GND 50Hz
  • Overall size (LxWxH) (cm) ca. 210 x 120 x 110
  • Weight (kg) 430

* Subject to technical changes.

Dantex Aqua Water Wash Plate Processor

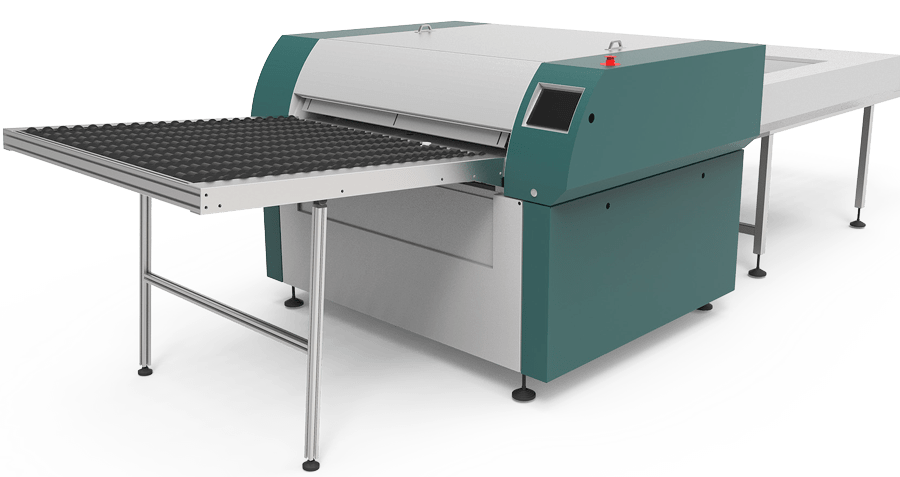

The Dantex Aqua is specifically intended for processing and drying water-washable printing plates and has been designed to provide exceptional plate quality, combined with minimal maintenance. It is robustly constructed and provides reliable & consistent operation day after day.

Dantex Aqua Plate Processor



AQUA 760/920/1100 Features for Your Benefit

  • Processing time: 30 min. (900 mm x 1200 mm x 100 mm / min.)
  • Fresh water or tank system for washing out flexographic printing plates
  • Very easy handling and maintenance
  • Chain drive system
  • Adjustable surfactant dosage and water flow rate
  • Double wash head with programmable speed
  • User friendly interface

Technical Specifications

  • Processing time: 30 min. (900 mm x 1200 mm x 100 mm / min.)
  • Fresh water or tank system for washing out flexographic printing plates
  • Very easy handling and maintenance
  • Chain drive system
  • Adjustable surfactant dosage and water flow rate
  • Double wash head with programmable speed
  • User friendly interface
  • Extended drying option *

* Without drying tunnel an exposure unit with dry drawer is needed.

Dantex AQF Exposure Units - A2 & A1 Models

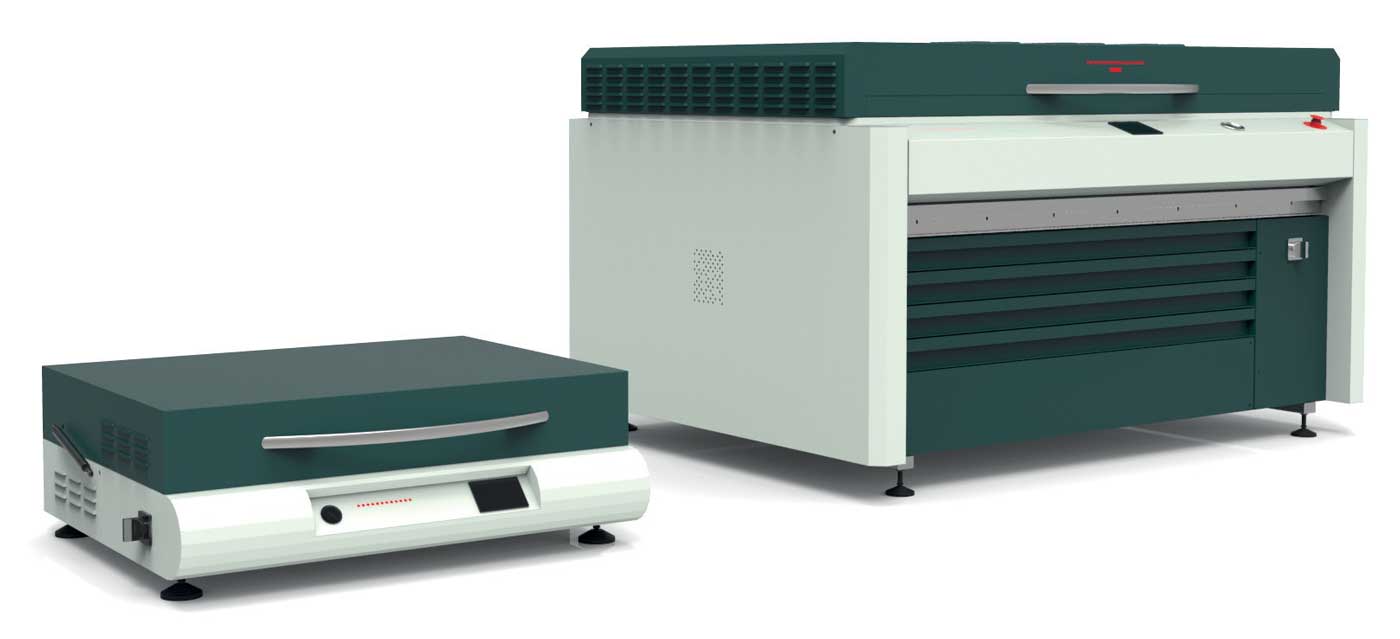

AQF exposure systems have been designed for use with Torelief, Rapidoflex and Aquafl ex plates. They are manufactured in 2 sizes to allow for plate production of up to 900mm x 1200mm.

Dantex AQF Exposure Units

AQF A2 SPECIFICATIONS

  • Max. exposure: 520mm x 770mm / 20.0" x 30.0"
  • Power: 1.3Kw - 220/240V - 50/60Hz
  • Unit dimensions (L x W x H)
    1100mm x 1020mm x 370mm / 43.3" x 40.2" x 14.6"
  • Weight: 80Kg/177lb
  • No. of tubes: 12 x 40W 09N / 12 x 10R 3ft
  • Desktop model

KEY FEATURES OF THE AQF A2

  • 98 Channel pre-set memory timer
  • Manual fast vacuum system & digital readout
  • Specially designed vacuum foil dispenser
  • Quick-release clamp and roll bar
  • 12 quick-start, no flicker UV tubes
  • Integrated UV light output
  • Lamp temperature control software
  • Electronic lamp failure detection

AQF A1 SPECIFICATIONS

  • Max. exposure: 920mm x 1320mm / 36.2" x 51.5"
  • Power: 6.5Kw - 230/400V - 50/60Hz 3PH + N + E
  • Unit dimensions (L x W x H)
    1840mm x 1550mm x 1200mm / 72.5" x 61.0" x 47.3"
    1850mm/72.9" (Height with lid open)
  • Weight: 650Kg/1433lb
  • Exp. lamps UVA: 21 x 80W /10R
  • Post Exp. UVA: 17 x 80W /10R
  • UVC lamps: 16 x 60W /95
  • Configuration:
    1 detack drawer, 2 storage drawers (Flexo model)
    3 storage drawers (Letterpress model)

    • KEY FEATURES OF THE AQF A1

    • 9 Channel controller for each step with LCD
    • Lamp life counter for main/post/detack unit
    • Pre/back exposure
    • Main exposure time
    • Post-exposure
    • Detack exposure time (Flexo)
    • Lamp on LEDs for each unit
    • Working plane 900mm
    • Main exposure frame with cooling (option on request)

Download: Dantex AQF Exposure Units A1 & A2 Data Sheet - Adobe PDF, 1.4MB
