The Art of Performance.
We believe technology has the power to push creative boundaries, exceed the limits of imagination and propel artistry to new heights. That’s why, after 20 years of perfecting wide-format printing technology, we are ready to unveil our most advanced printer to date, designed to transform your artistic vision into a truly unforgettable experience.

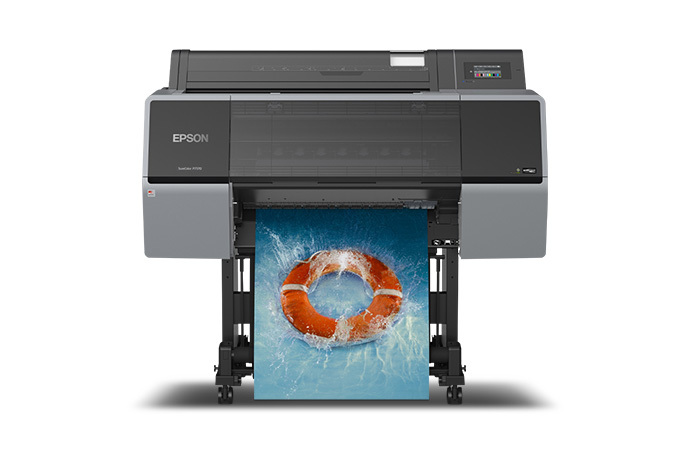

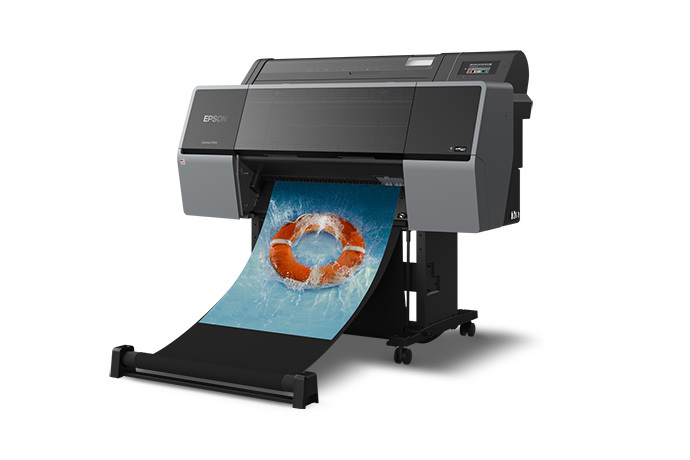

Introducing the all-new SureColor P7570, the next generation of wide-format printing—only from Epson.
From professional photography to proofing and graphic design, the SureColor P7570 was built from the ground-up to uniquely cater to the full spectrum of creative needs. Featuring all-new UltraChrome® PRO12 Ink, the SureColor P7570 captures every detail with unparalleled color brilliance2 and accuracy. And, with a new 2.6" PrecisionCore® printhead, you get unmatched image quality at speeds up to 2.4 times faster than our previous generation.
Welcome to the future of professional imaging.
Downloads
Epson SureColor P7570 - Product Specification Sheet, Adobe PDF
Epson SureColor P7570 - Sales Reference Guide, Adobe PDF
Model: SCP7570SE
- Our most advanced wide-format printer yet — tackles photography, fine art, proofing and graphic design printing with unmatched image quality and performance
- Powered by PrecisionCore — new 2.6" printhead performs at speeds up to 2.4 times faster than our previous generations
- Extreme color gamut — all-new UltraChrome PRO12 Ink with Violet produces astounding color with up to 99 percent coverage of the PANTONE® FORMULA GUIDE solid-coated standard
- Realtime Photo and Matte Black ink switching — dedicated nozzles for both black ink types
- Industry-leading print permanence — creates prints that last up to 200 years color and 400 years black-and-white
- New customizable touchscreen — first-in-class to feature a customizable, 4.3" color touchscreen for easy navigation
- Reliable printer design — redesigned industrial-level print engine for lasting durability and an interior LED light for convenient operation
- Increased black density with Black Enhance Overcoat — improved Dmax for a wider contrast ratio with enhanced clarity and increased sharpness on glossy papers
- Optional Epson SpectroProofer® — automates color calibration and proof verification tasks for proofing applications with optional third-party RIP and workflow software
- Easy workflow integration — compatible with most third-party RIP workflow software
Print:
Printing Technology
PrecisionCore MicroTFP 12-channel, drop-on-demand printhead
Ink Type
UltraChrome PRO12 pigment ink;
12-ink, 12-color
ink configuration: Cyan, Light Cyan, Vivid Magenta, Vivid Light Magenta, Yellow, Gray, Light Gray, Orange, Green, Photo Black, Matte Black and Violet
Fade Resistance/Print Longevity
Color: up to 200 years; Black-and-white: up to 400 years
Nozzle Configuration
Color and monochrome heads; 9600 nozzles (800 nozzles x 12)
Droplet Technology
Smallest droplet size: 3.5 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Resolution
2400 x 1200 dpi
Printer Speed
23.4" x 33.1" prints
Normal (BEO: off) 2:02
Normal (BEO: on) 4:04
(BEO=Black Enhance Overcoat)
Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard
Ink:
UltraChrome PRO12 Ink (700 mL)
Photo Black T44H120
Cyan T44H220
Vivid Magenta T44H320
Yellow T44H420
Light Cyan T44H520
Vivid Light Magenta T44H620
Gray T44H720
Matte Black T44H820
Light Gray T44H920
Orange T44HA20
Green T44HB20
Violet T44HD20
UltraChrome PRO12 Ink (350 mL)
Photo Black T44P120
Cyan T44P220
Vivid Magenta T44P320
Yellow T44P420
Light Cyan T44P520
Vivid Light Magenta T44P620
Gray T44P720
Matte Black T44P820
Light Gray T44P920
Orange T44PA20
Green T44PB20
Violet T44PD20
UltraChrome PRO12 Ink (150 mL)
Photo Black T44W120
Cyan T44W220
Vivid Magenta T44W320
Yellow T44W420
Light Cyan T44W520
Vivid Light Magenta T44W620
Gray T44W720
Matte Black T44W820
Light Gray T44W920
Orange T44WA20
Green T44WB20
Violet T44WD20
General:
Weight and Dimensions (W x D x H)
Basket Closed: 55.2" x 26.3" x 48" (1401 mm x 667 mm x 1218 mm)
Weight: 269 lb (122 kg)
Acoustic Noise Level
Less than 49.5 dB(A) according to ISO 7779
Temperature
Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Relative Humidity
Operating: 20 - 80% (no condensation)
Operating (recommended): 45 - 60% (no condensation)
Storage: 5 - 85% (no condensation)
Electrical Requirements
Voltage: AC 110 - 240 V
Frequency: 50 - 60 Hz
Current: 2 A
Power Consumption
Printing: approx. 85 W, Ready: approx. 32 W,
Sleep Mode: approx. 3.4 W (1000Base-T Ethernet in Standby), Power Off: less than 0.3
Standards and Approvals
Safety standards: UL62368-1, CAN/CSA C22.2 No.62368-1 EMC FCC part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR22 class B, AS/NZS CISPR 32 class B
Limited Warranty and Service
Standard 1-year usually next-business-day on-site repair with toll-free phone support Monday through Friday
Country of Origin
China
