EVO 3 EDLF

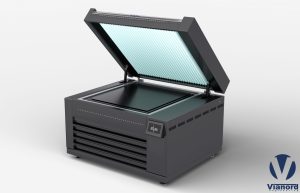

The EVO 3 EDLF is a combined unit that features an exposure with automatic lid, dryer (4-drawer), and light finisher.
It is designed to process solvent-washable as well as water-washable, polyester-backed, analog, and digital plates up to a size of 90 x 120 cm (36x48 inch) and thickness up to 7 mm (0.276 inches).
The standard version is equipped with a stress-accumulation early warning system and may be equipped with optional tools that enable remote monitoring and remote diagnostics.
Exposure
- New cooling bed system to grant a uniform and constant temperature without any exposure time limit
- Vacuum system for analogic plates exposure
- Probe for temperature control
- High concentration of UVA lamps to ensure the highest UV output in its class
- Light integrator
- Lamps air flow cooling system with temperature control
- Optical fibers lamp control
Light-Finisher
- Auto combined UVA-UVC post-exposure (simultaneous/consecutive/delayed)
- Air flow cooling system
- Optical fibers lamp control
Dryer

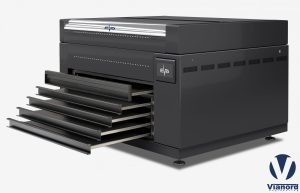

- 4 sealed drawers to prevent any leak of fumes
- Drying temperature reached in a very reduced time thanks to the new hot air generation and circulation system.
- Automatic pre-heat system
- Automatic switch off option
- Optimal T° uniformity thanks to 2 separate T° controls interfaces
- New air suction system design to ensure a faster plate drying
Vianord EVO 3 ELF Brochure, Adobe PDF file, 539K.
