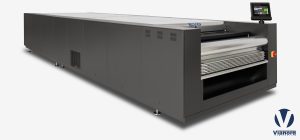

EVO 5 BP
The EVO 5 BP system can be used as stand-alone unit or core module of an Easy to Plate™ system EVO 5 BPD or EVO 5 BPI.
It features a batch washout unit (Plate Processor) and an internal integrated punch.
It is designed to process solvent-washable, polyester-backed, analogue and digital plates up to a size of 132 x 203 cm (52x80 inch) and thickness up to 7 mm (0.276 inches).
It is equipped with a pre-wash section for digital plates with a separate tank to recover the black layer. The batch processor comes in the extended size, with a very high washout speed: the plate enters the processor quickly, is fully washed at once, and exits rapidly.
The standard version is equipped with a stress-accumulation early-warning-system and may be equipped with optional tools that enable remote-monitoring and remote-diagnostics.
Plate Processor 132x203 cm (52x80")
The Evo 5 BP is a flexo batch processing unit in the size 132 x 203 cm (52x80 inch). As all Vianord processors, it is equipped with a pre-wash section for digital plates with a separate tank for the black layer. The batch processor comes in the extended size, with a very high washout speed: the plate enters the processor quickly, is fully washed at once, and exits rapidly.
This unit is compatible with the Easy to Plate™ system.
Plate Entrance
- The Plate holder at the bottom of the machine allows the user to store rolled plates to avoid any damage and have them ready to use.
- The Pin bar storage section can carry up to 8 pin bars.
- The integrated automatic rollaway punch automatically opens when the front lid is opened. Then it is enough to position the plate in the device to have it pierced with precision. The number of times the punch pierces the plate is programmable according to the user's preferences.
Washout
- Digital washout with separate pre-wash section to prevent contamination of the main washout solvent with black layer
- 2 pre-wash brushes (oscillating and rotating)
- 10 washout brushes (oscillating and rotating)
- 1 top cleaning brush (oscillating and rotating)
- 1 wiping brush (oscillating and rotating)
- 2 back cleaning brushes (rotating)
- New volumetric pump and sensitive pressure sensor allow a higher precision solid content analyser
- Automatic solvent replenishment system
- the new "3D Brush Motion" system with servo drive motors enables a soft mechanical start which results in less vibrations and a much more quieter machine.
- It also provides a constant and repeatable washout speed; in fact, the new system, adjustable from the display, automatically synchronizes the brushes rotation and oscillation speed to the plate transfer speed; so that bristles hit the plate, thin or thick, always at the same speed
Additional Features
- 30 x 30 rotating and tilting touch screen display
- Programmable automatic solvent warmup
- Automatic standby after the last plate processed
- Remote access (optional)
- Active component visualisation during the process
- Manual function to run the components separately
- Memorization of the plate process parameters (up to 24 channels)
