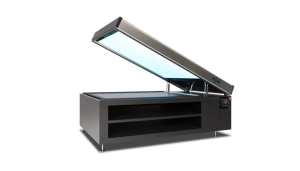

EVO 5 E
The EVO 5 E is a stand-alone unit which features an Exposing unit which complements the Easy to Plate™ system.
It is designed to back-expose and main-finish solvent-washable as well as water-washable, polyester-backed, analogue and digital plates up to a size of 132 x 203 cm (52x80 inch) and thickness up to 7 mm (0.276 inches).
The standard version is equipped with a stress-accumulation early-warning-system and may be equipped with optional tools that enable remote-monitoring and remote-diagnostics.
Exposure 120x160 cm (47x63")
This unit is presented with a completely renewed temperature control system. The integrated chiller, along with the new air cooling system for the lamps, as well as the new water cooling system for the exposure table, grant a new level of temperature control precision.
Another convenient solution studied by Vianord is the new control display which can be can be installed either on the left or the right side, according to the customer's preference. The software can memorize up to 24 channels for different plates; which can be stored in the two racks situated in the machine main body.
Downloads
Vianord EVO 5 E Brochure, Adobe PDF, 285KB.
