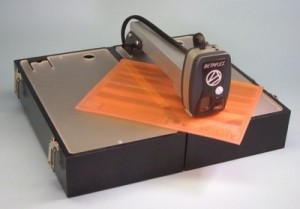

The new Betaflex Pro system operates at the highest resolution to provide the most accurate and consistent measurements. HD Flexo, stochastic screening, and all the most sophisticated prepress techniques can be measured and controlled with ease and accuracy.
Revolutionary 3D imaging and DOT STRUCTURE Mode add togographical visualization to the conventional dot area halftone measurements. Dot height, diameter, slope and more are visualized and automatically measured at 22,000PPI. Surface enhancement techniques are easily seen and quantified.
The new high resolution system is portable and easy to use. Operating in TRANSMISSION mode at 14,000 PPI, it quickly and accurately measures all types of transparent flexo plates, digital ablation masks, and halftone films. The new Mask Stain Density function eliminates the need to carry an old fashioned film densitometer to verify laser energy, focus, and beam adjustments.
In PRINT mode color separation imaging of offset plates and color prints on film and paper measures Dot Area, Screen Ruling, Edge Factor and more. Data and images are easily captured and printed with the integral report generator and statistical analyzer.
The new automatic 4 point calibration system eliminates the need to make multiple manual measurements. The Calibration Target and software system maintains a database of instrument status to satisfy the most stringent ISO registration requirements. All of this is combined with the high precision, ease of use, and Beta product support that has made Betaflex the standard for Flexo Quality Control.
- Measure flexo plates, films, and digital masks in conventional 2D mode
- Dot Structure Analysis in 3D mode reveals dot height, slope, and more
- Print mode measures true mechanical dot area on offset plates and prints
- Automatic 4 point calibration system with ISO-compliant target
- Mask Stain density function for laser ablation setup
- Image Overlay and Comparison function to visialize and measure dot changes
Download: BetaFlex Pro Data Sheet.
Optional Software for BetFlex Pro
BetaFlex Pro FlexoEyePlus Database Software
FlexoEyePlus, the optional software data collector & report generator for use with the Betaflex PRO guides the operator to collect just the plate data needed in a high volume production environment.
FlexoEyePlus introduces no unnecessary steps or obstacles to high volume production. Tightly integrated into the standard software application, it introduces convenient PASS/FAIL icons to evaluate minimum and midtone dot, stain density, cutback curve, plate relief, and more while displaying the data on a concise display and plotting the day's production on a convenient graph.
FlexoEyePlus works seamlessly with the optional FlexiGage Digital Micrometer and is a required part of the software suite. Plate gauging data is automatically written into the same report as 2D halftone data and 3D dot structure data.
The reporting suite consists of four highly detailed and illustrated reports;
- Laser Check report – verifies Laser Power, Focus, Linearity, and Minimum Dot formation
- Plate Check report – ties Plate Material, Job ID, Min Dot, Process and Workflow Curves together
- Material Reference – allows creation of a Plate material file used as input to Laser and Plate reports
- Statistics – creates plots of Laser and Plate report data across user-selected materials and dates
The Production Log Report captures user-defined halftone and micrometer data and generates a highly concise one-line report in real-time for each plate. Measurements are automatically compared to targets and tolerances, out-of-spec data is highlighted on the spreadsheet-like report.
User-defined target values and tolerances can be entered by the QC department to control the PASS/FAIL signals to the production staff. Report generation is automatic and Excel output is created directly in the Statistics section. Reports can be printed with target values and tolerances for internal use or with production data only for sales and marketing purposes.
Download: FlexoEyePlus Software Data Sheet
Included with FlexoEyePlus is the NEW BetaFlex Pro Workflow Automation / QR Code Relational Database for the BetaFlex Pro software utilizes a micro QR Code and full relational database to track the photopolymer sheet through imaging, processing, and final QC check. Is included with your purchase of FlexoEyePlus Software
Working in conjunction with the ESKO Automation Engine, the QR code is automatically generated and imaged on the mask. Face and back exposure settings come directly from the Automation Engine. Plate type definitions are contained in the QR Code used to set the plate processor parameters. This eliminates the possibility of operator error when keying in the exposure and processing settings for the plate.
The Micro QR Code on the processed plate is automatically recognized by the new BetaFlex PRO software, setting the measurement parameters, recording the measured results of dot area, dot structure, plate thickness, and relief. Errors in configuration of the BetaFlex PRO due to operator error are now eliminated.
A report is generated and written to the database, linking the plate measurements to the customer and the job.
A fully functional 100 day timed demo is included with every BetaFlex Pro system.
Download: BetaFlex Pro Workflow Automation/QR COde Relational Database Data Sheet
